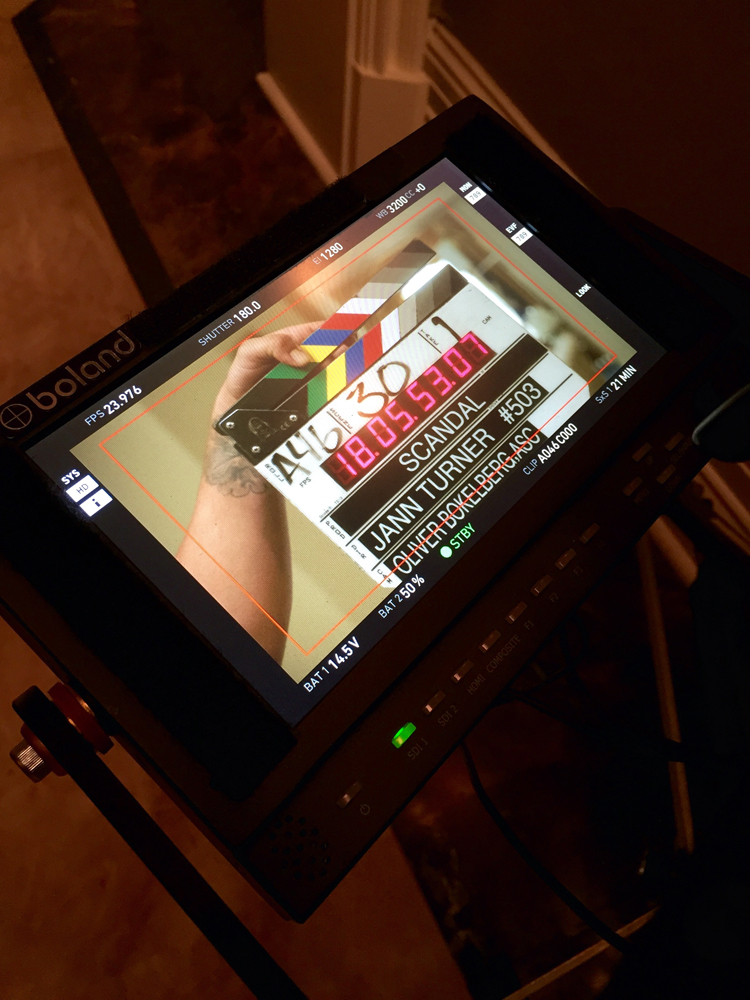

BVB07

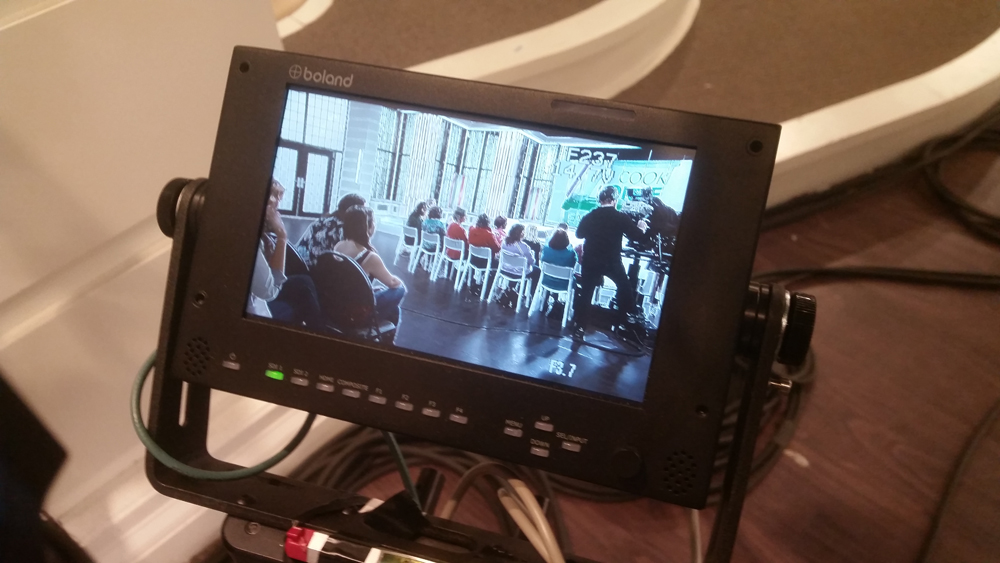

7” DayBrite / 2-Way Cross Conversion Monitor

  • Image Flip – Scan Reverse
  • Digital Level; Volt Meter; 8 pin Lemo Connector (power, signal, Tally)

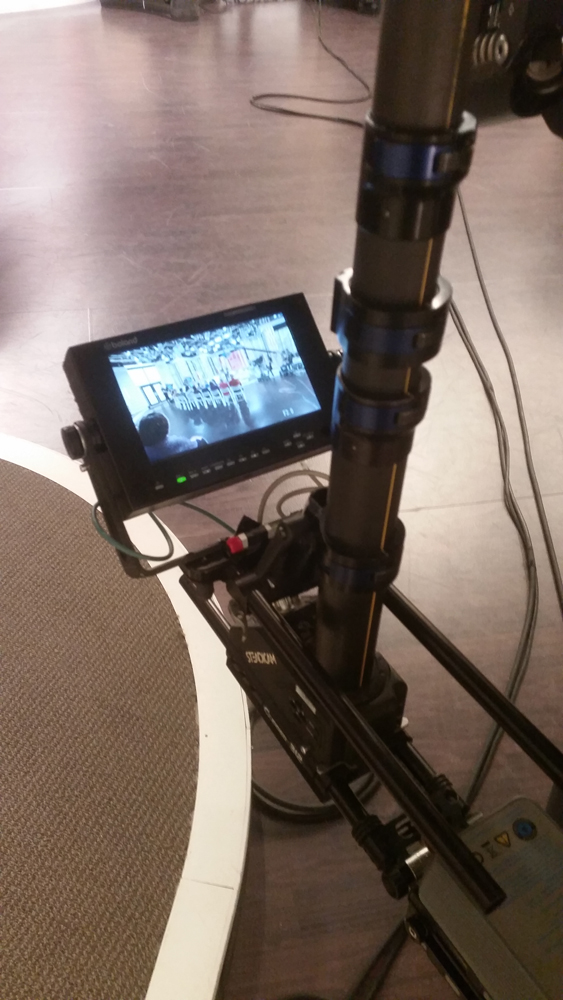

  • 1/4-20 Mount Holes on all four sides
  • 2000 nts High Brightness LCD Panel (LED backlight) ; Anti-Reflective
  • 2-Way Cross Conversion (SDI to HDMI / HDMI to SDI)
  • High & Standard Definition Video LCD Monitors 1080/720/576/480
  • 3G includes 2x3G/HD/SD SDI-Digital input/ HDMI x1 input
  • Dual Link MODE & 1080p 60 Compatible •HDMI inputs accepts up to 1080p HD
  • Modes: EGA to UXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
  • Analog Inputs are Composite
  • Aspect Ratio: 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1:
  • Waveform (Y Parade) & Vector Scope(SDI Only).
  • Marker Display.
  • Peaking Filter/Zoom function/False Color
  • Audio Level Meter.(16ch, Level meter position, Level meter scale)
  • UMD/IMD Support.
  • Closed caption. (CEA608 & 708, SDI Only)
  • Color Temperature – User, VAR, 9300K, 6500K, 5400K, 3200K
  • Focus Assist

downloadproductdatasheet

Description

SPECIFICATIONS
Active Area (Diagonal): 7.01”/ 142 mm

MODES
High & Standard Definition Video Modes: 2048x1080p(24/25),1920x1080p(50/60/30psf/25psf/24psf/30/25/24),1920x1035i(60/59.94),1920x1080i(50/59.94/60),
1280x720p(24/25/30/50/59.94/60),480i(59.94),576i(50) Digital, HDMI
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M
Scanning Modes: Under/Over/Zero/Pixel to Pixel Scanning

INPUTS
Digital Video Inputs: 3G HD SDI x2, HDMI x1
Analog Video Inputs: Composite x 1

Aspect Ratios: Full Screen, 16:9, 4:3, 14:9, 13:9, 1.85:1, 2.35:1
Picture-in-Picture : Composite input + HDMI input+ SDI1 input + SDI2 input PIP
Picture-by-Picture: Side by Side split screen display
Pixel (RGB Trio) Arrangement: 1024 H x 600 V Pixels RGB strip arrangement
Pixel (RGB Trio) Pitch, Depth: 0.05(H)mm × 0.15(V) mm; 16.7M colors
Brightness, typical, 0°: 1500 cd/m2
Contrast Ratio, 0° 800:1
Color Processor: 10 bit color Processor
Viewing Angle, contrast>10:1 : R/L 170(Typ.), U/D 170(Typ.)

CONTROLS
User Controls: ST-BY, SDI1~2, HDMI, Composite, SCAN, MARKER, F1 ~ F6. MENU, SEL/INPUT, UP, DOWN, ADJUST
Remote Controls: TCP/IP, RS-232

BACKLIGHT
Light Source (standard): LED backlight system; 40,000 hrs

CONNECTORS
Video Connectors: BNC x 4 (SDI x 2 input/ SDI 1 Output /Composite 1 Input)
HDMI Connectors: HDMI x 2 (1 Input/ 1 Output)
AUDIO Connectors: Phone Jack x2 (Audio 1 Input/Audio 1 Output)
Controls Connectors: RJ45 x 2 (Ethernet), D-sub 9P (RS-232C/UPDATE)

POWER
DC Power: 12 VDC (11-18v)
DC Connector: XLR-4M (XLR mini) (pin 1=Gnd, pin 4=+volts)
AC Power (detached power supply included): 100-240 VAC, 50/60 Hz
AC Power Connector: IEC 320-C14 3 pin Male

DISPLAY
Window (Display Area): 6.04” x 3.54” / 153.6 mm x 90 mm
Cabinet Dimensions: 8.11 x 5.19 x 2.24” / 206.0 x 132.0 x 57.0 mm (whd) (without Stand)
Weight: 25 oz./ 1.5 lbs / .71 kg (without Stand)
Mounting / Rack Mounting: Desk stand / Yoke included; Rackmount available
Available Options: Safety Glass (removable); Power Options: Lemo Connector, Hirose to XLR mini, P-Tap to XLR mini; Anton Bauer battery plate
