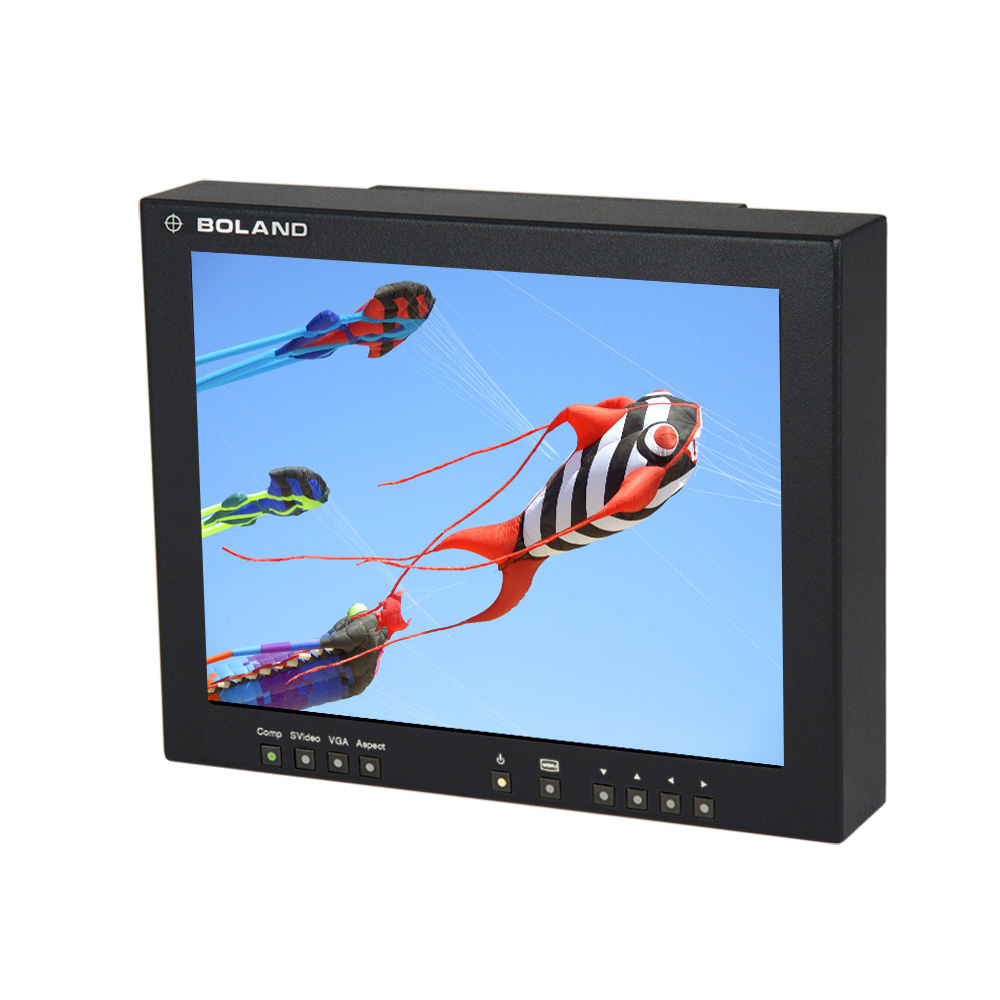

xd08
8.4 ” Professional HD & SD Digital and Analog Monitor
- High & Standard Definition Video LED Backlit Monitor 1080/720/576/480
- Analog are Composite, Component, and VGA inputs
- LED Backlight System for Low Power and Stable Operation
- Modes: EGA to WUXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
- All 10-bit Digital Processing, 16.7 million true colors, 24 bit
- Aspect Ratio: 16:9, 4:3, 1.85 to 1, etc.
- Fully Adjustable Scans: H & V sizes, Position, Reverse Scan
- High Resolution 1024 x 768, 176° Wide View Angles
Description
SPECIFICATIONS
Active Area (Diagonal): 8.4″ / 213 mm
MODES
High & Standard Definition Video Modes: 1080/720/576/480 @23/24/25/29/30/60 i/p/sF Digital and Analog (autoselected), VESA VGA & DVI
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M (autoselected)
Scanning Modes: Under/Over Scanning
INPUTS
Analog Video Inputs: Composite, Component, and PC VGA (EIA, CCIR, VESA, SMPTE 274)
Aspect Ratios: 16:9, 4:3, Letterbox, and (de-) Anamorphic, Fixed and Variable Aspect Ratio Images
Picture-in-Picture : Window is size and position adjustable
Picture-by-Picture: Side by Side split screen display
Pixel (RGB Trio) Arrangement: 1024 x 768 RGB (480,000 x3 RGB pixels)
Pixel (RGB Trio) Pitch, Depth: 0.1665(H) x 0.1665(V) mm
Brightness, typical, 0°: 400 nts (cd/m2) (hi-brite)
Contrast Ratio, 0°: Front panel control, 100 to 3%
Color Bit Depth: 400:1 (high contrast)
Viewing Angle, contrast>10:1 : 16.7 million colors (12-bit Digital Processing)
Response Time: H: 170°, V: 170° (wide angles)
Standard Definition Video Resolution: 25/10 ms
CONTROLS
User Controls: On/Off, Menu System: Step, Increment, Decrement, Hot Keys
Remote Controls: InfraRed (IR) and RS-232 (bi-direx)
BACKLIGHT
Light Source (standard): White Solid State LEDs
Native Color Temperature: D65 (0.313, 0.329) Color Temperature Presets are Menu adjustable
Lamp Life: 30,000+ Hours
CONNECTORS
Video Connectors: YPbPr/YCrCb in (3),Composite in/out (2: Hi-Z passive loop-thru / auto-termination)
S-Video (Y/C) Connector: 4-pin Mini-DIN (replaced when SD SDI)
VGA/PC Connector: DE-15HD-F (detachable 10′ M/M cord)
POWER
DC Power: 12 VDC (9.0~18.0), 24 watts (very low power) (9-36v input is optional)
DC Connector: XLR4-M (pin 1=gnd, pin 4=plus volts)
AC Power (detached power supply included): 90-264 VAC, 50/60 Hz, 30 watts (worldwide power)
AC Power Connector: IEC 390-C14 3 pin Male (universal)
DISPLAY
Window (Display Area): 6.71 x 5.03″ / 170 x 128 mm
Cabinet Dimensions: 8.20″ x 6.96″ x 2.98″ / 208 x 177 x 76 mm
Weight: 3.8 lbs / 1.8 kg, (without stand, power supply, or rackmount)
Mounting / Rackmounting: 1/4-20 Top & Bottom, VESA 75 & 100 (10-32 x 8, backside) Options: 19″ RM (4 RU),
also desk, wall, yoke, cam rail, etc.
Operating (full spec): -30 ~ +85°C @ 10-90% RH, no condensation, 10,000 ft. / 3000 m
Storage: -30 ~ +85°C @ 10-90% RH, no condensation, 40,000 ft. / 12000 m
Case Color & Material: Textured Semi-Gloss Black Powder Hard Coat, Aircraft Aluminum, Anti-reflecting Glass cover
Approvals: RoHS (Pb) Compliant Product
